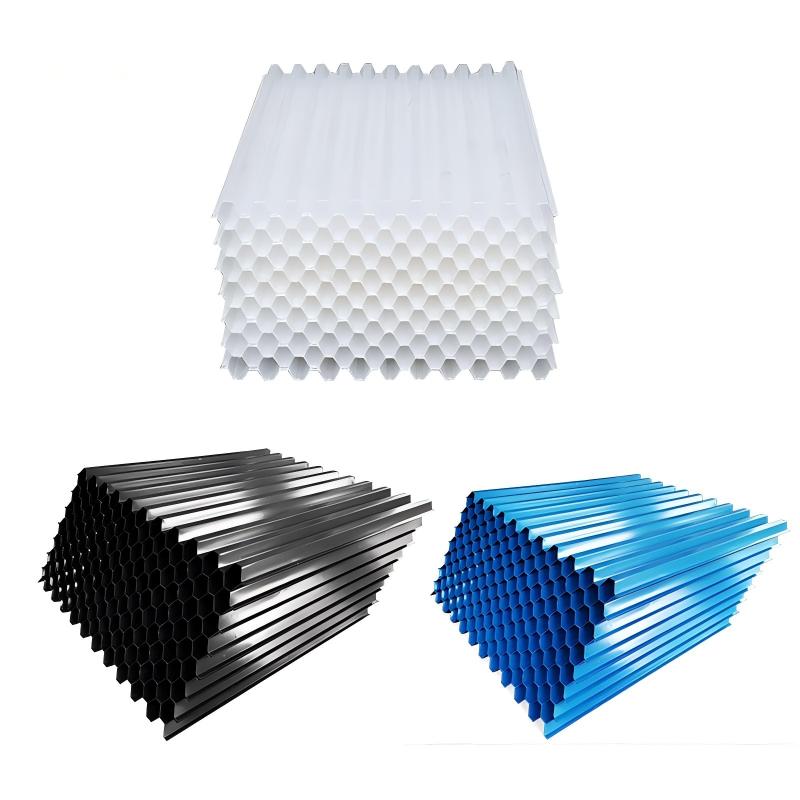

Heavy-Duty PP/PVC Lamella Tube Settler Media
Short Description
The PP and PVC Lamella Tube Settler Media is a universally proven, high-efficiency solid-liquid separation solution for water supply and drainage engineering. By dividing the clarifier into multiple shallow tubular channels, it drastically multiplies the settling area. This provides an inexpensive and highly effective method to upgrade existing water treatment plants—improving sedimentation performance and reducing solids loading on downstream filters without the need to expand the tank footprint.
🌟 Key Engineering Advantages
- Enhanced Structural Integrity: Specifically engineered to avoid the pitfalls of cheap, thin-wall membranes. Our manufacturing process utilizes advanced forming techniques to minimize component stress, effectively preventing environmental stress cracking fatigue and ensuring a long service life under heavy sludge loads.
- Modular & Self-Supporting Design: Features a cubical, honeycombed inclined tube structure. This self-supporting modular design not only guarantees excellent mechanical strength but also significantly aids handling during on-site installation and subsequent maintenance.
- Cost-Effective Capacity Upgrades: Instantly boosts the handling efficiency of existing sedimentation basins. For new installations, it allows engineers to dramatically reduce the required clarifier tankage and overall civil works footprint.
- Versatile Material Options: Available in both high-grade PP (Polypropylene) and UV-stabilized PVC to perfectly match your specific effluent characteristics and temperature requirements.
📊 Technical Specifications
(Customizable apertures and thicknesses are available upon project request.)
| Aperture / Pore Size (mm) | | | |
| | | | |
| | 0.4 / 0.6 / 0.8 / 1.0 / 1.2 | | |
| | 0.4 / 0.6 / 0.8 / 1.0 / 1.2 | | |
| | 0.4 / 0.6 / 0.8 / 1.0 / 1.2 | | |
| | 0.4 / 0.6 / 0.8 / 1.0 / 1.2 | | |
| | 0.4 / 0.6 / 0.8 / 1.0 / 1.2 | | |
🏭 Typical Applications & Global Reach
Recognized as universal water treatment equipment, our tube settlers are widely deployed across various demanding sectors.
- Municipal & Drinking Water: Ideal for inlet sand removal, primary precipitation, and drinking water clarification.
- Industrial Wastewater: Highly effective for heavy solids settling and efficient oil-water separation processes.
- Sewage Treatment: Upgrading secondary clarifiers and trickling filters for enhanced effluent polishing.
- Global Project Proven: Successfully deployed and assembled on-site in major international infrastructure projects, including large-scale municipal waterworks in Uganda and other overseas markets.
