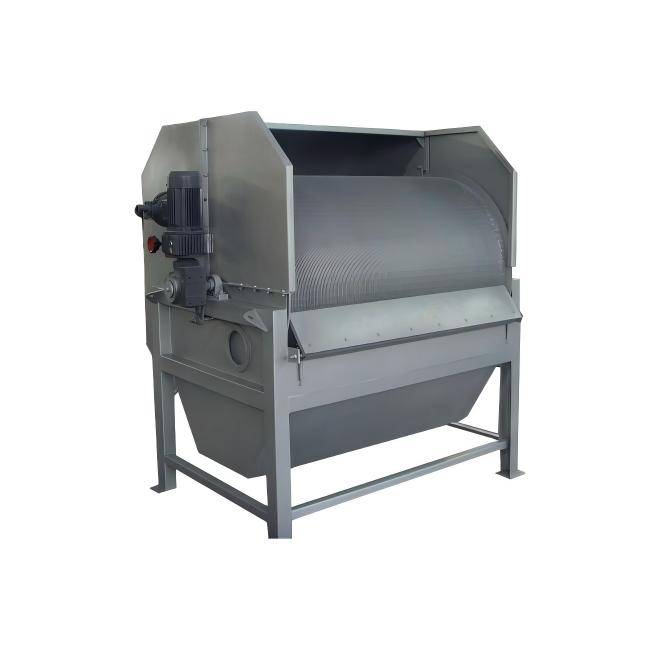

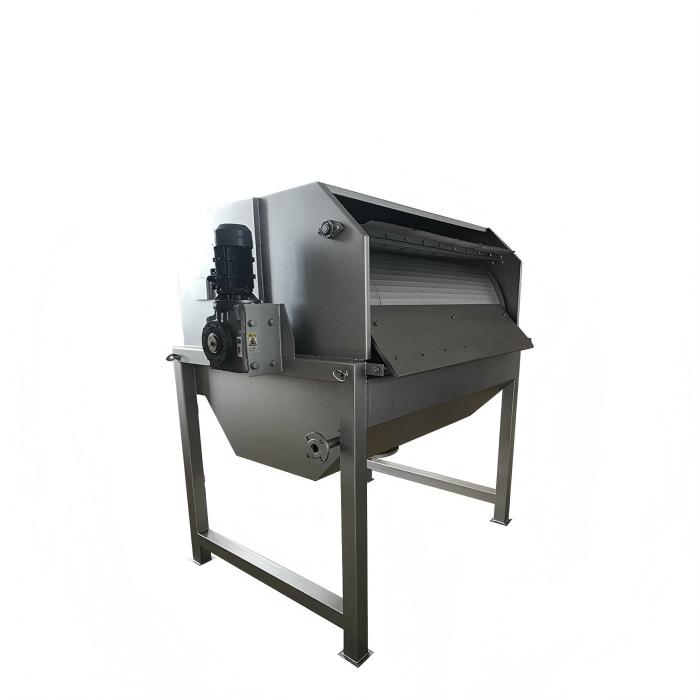

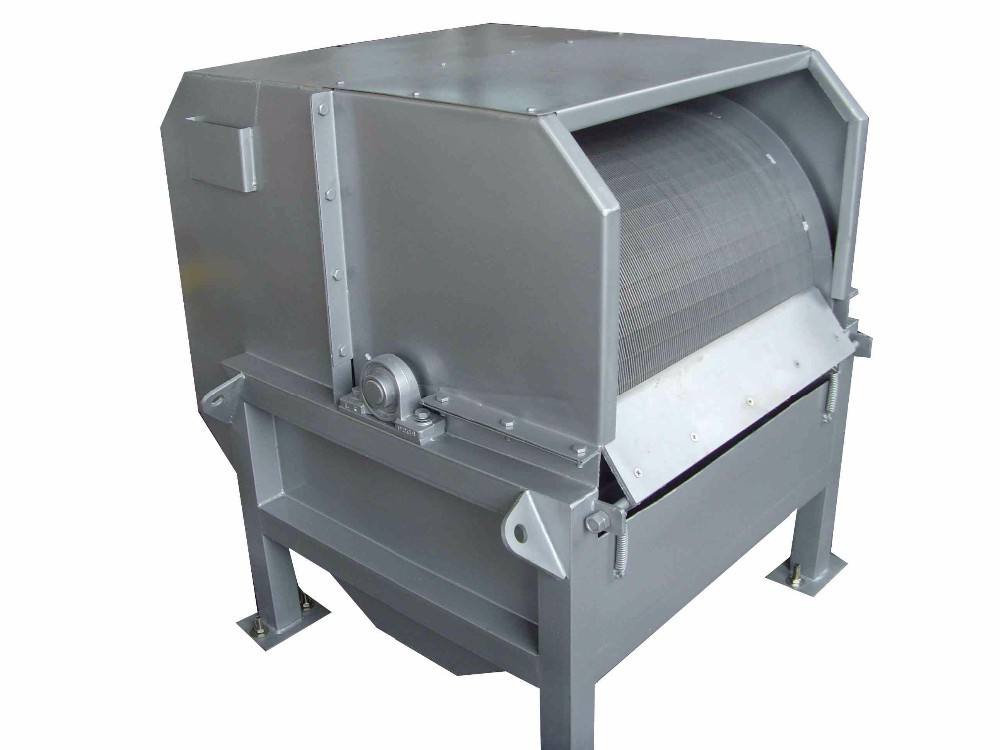

Overview The Stainless Steel Rotary Drum Filter (also known as a micro screen filter) is an essential advanced pre-treatment device for modern wastewater treatment plants. It is expertly designed to execute highly efficient solid-liquid separation by filtering out solid suspended matter, fibers, hair, paper pulp, and other coarse particulates from raw sewage.
Manufactured from premium stainless steel, this robust equipment provides outstanding corrosion resistance, ensuring a long service life even in harsh municipal or industrial environments.
Working Principle
- Inflow & Distribution: The raw wastewater is pumped into a specially designed distribution tank. It overflows a weir and distributes evenly onto the surface of the rotating filter drum.
- Filtration: As the water passes through the precise gaps of the drum screen, suspended solids are effectively retained on the drum's outer surface.

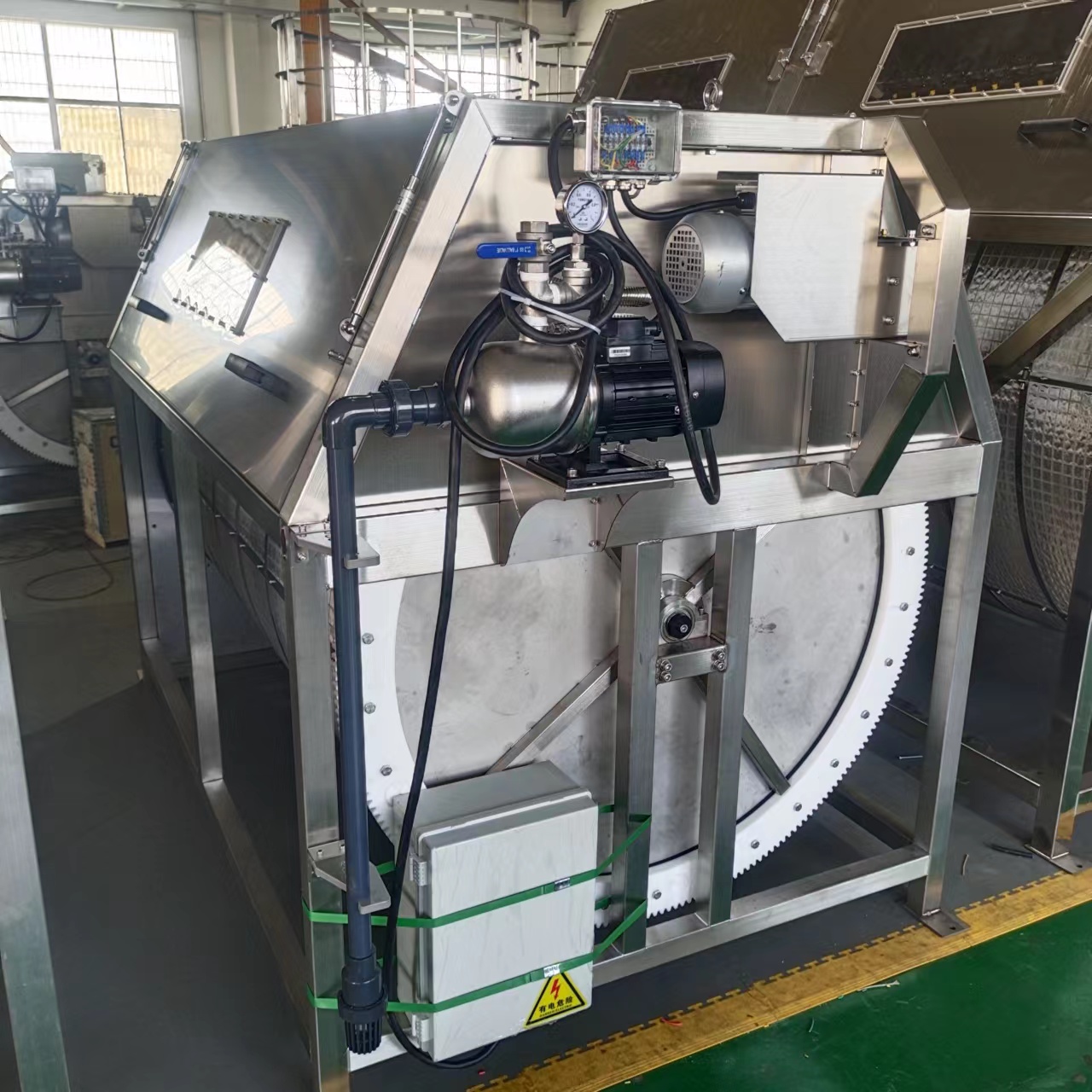

- Discharge & Cleaning: The drum rotates continuously. A stationary scraper blade securely removes the trapped solid waste from the drum surface, directing it into a collection trough for disposal. A built-in backwash pipe ensures the screen remains unclogged and operates at peak efficiency.
Key Features & Advantages
- Exceptional Durability: Fully constructed with high-grade stainless steel to resist rust and chemical corrosion, guaranteeing long-term stability.
- Continuous & Automated: Engineered for continuous 24/7 automatic operation with minimal human intervention.
- Energy Efficient: Equipped with low-power consumption motors (ranging from 0.55 kW to 2.2 kW depending on the model), dramatically reducing operating costs.
- Compact Design: The integrated structure minimizes the required installation footprint while maximizing treatment capacity.
- Customizable Precision: Available with screen gap sizes ranging from 0.5 mm to 3.0 mm to meet specific project effluent requirements.
Technical Capabilities We offer a comprehensive range of models (Capacity from 10 m³/h up to 400 m³/h) to suit varying flow rates. Each unit is safely packaged in export-standard wooden crates to ensure secure global delivery.
